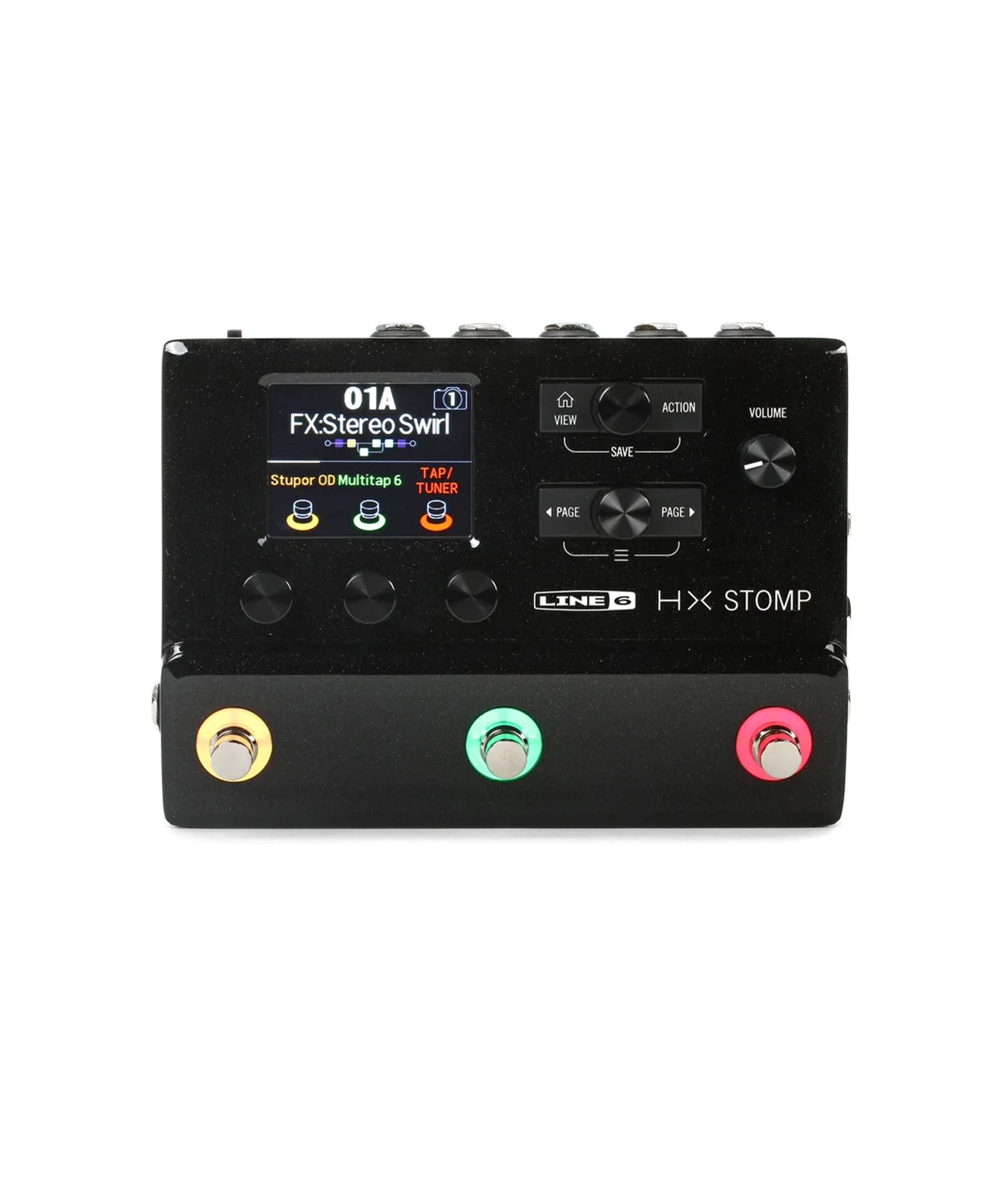

Line 6 HX Stomp Multi-effects Floor Processor - Black

The brains and brawn* of the award-winning Helix family comes to a board-friendly 3-switch stomp in the Line 6 HX Stomp. The HX Stomp makes the ultimate standalone travel rig, a fully loaded modeling and FX engine to front-load an amp, and a capable audio interface with re-amping capabilities. Choose up to eight blocks — amps, cabs, and stomps — per preset, and assign switches to suit your particular needs. The HX Stomp is equipped for real-world gigging applications with 126 user presets for guitars, bass, and keys; and tons of I/O, which include TRS balanced outs, traditional MIDI switching, an FX return for 4-cable amp integration, and a 2-channel expansion jack for expression pedals or additional external switches.

Features:

• The processing power of the Helix family in a compact 3-switch stomp
• The ultimate standalone travel rig, or a balanced part of any pedalboard/amp setup
• 7" x 5" x 2.5" aluminum chassis — slightly larger than a paperback novel
• 300+ onboard amp, cab, and stomp models from the Helix family, M-series, and legacy Line 6 products
• World-class polyphonic pitch-shifting effects
• 126 presets to cover real-world gigging applications
• Choose up to 8 blocks per preset
• 24/96 HX audio engine delivers pristine quality and realistic modeling
• Brilliant 2.4" full-color display
• FX loop for front- or back-loading stomp effects
• Preconfigured 4-cable amp integration
• True stereo performance from input to output
• MIDI capability for traditional switchers and advanced performance integration
• Doubles as a USB audio interface with re-amp capabilities
• True bypass switching eliminates tone suck on your pedalboard
• Convenient computer-based patch management and firmware upgrades
• Supports third-party impulse responses (IRs)

Tech Specs:

• Pedal Type: Multi-FX with USB Interface
• Analog/Digital: Digital
• Presets: 126 (42 banks x 3 presets), 3 Snapshots per preset
• Number of Effects: 200+ (Helix & Legacy combined), up to 8 simultaneous FX
• Effects Types: Distortion, Delay, Reverb, Modulation, Pitch shift, Synth filter, Compressor/Limiter, Wah
• Amp Modeling: 80+ Amps, 60+ Cabinets, 3D Mic Placement (HX Edit 3.50 app)
• Impulse Response: Dual IR Block, 3rd Party IR Support, Store up to 128 IRs
• Looper: 60 seconds (mono), 30 seconds (stereo) ; 1-switch Looper, Shuffling Looper
• Inputs: 2 x 1/4" (L/mono,R), 2 x 1/4" (L/R, aux in)
• Outputs: 2 x 1/4" (L/mono,R), 1 x 1/4" (stereo send)
• MIDI I/O: In, Out/Thru
• USB: 1 x Type B (8 x 6)
• Headphones: 1 x 1/4"
• Other I/O: 1 x 1/4" TRS (expression/footswitch)
• Bypass Switching: Switchable: Analog, DSP
• Features: 450MHz SHARC DSP Processor
• Software: HX Editor (librarian, IR loader)
• Compatibility: Windows, macOS
• Power Source: 9V DC power supply (included)
• Height: 2.6"
• Width: 7.01"
• Depth: 4.96"
• Weight: 1.75 lbs.
